Crystal M100 Dental Unit
Crystal M100 Dental Unit
The smartest user experience. Dental care through innovation.
The Crystal M100 is designed with a simple, elegant style, where smooth, comfortable lines highlight three dimensional beauty. Classic and modern colour matching meets every individual's needs, while its ergonomic design delivers a pleasant, comfortable experience for both patients and dentists.
Key Features
Dental unit with 24V noiseless DC motor and memory programmes
Wide instrument working tray
Under hanging delivery unit with 5 points, including one micromotor point
Sleek backrest providing extreme comfort to patient and dentist
Double articulated headrest
Feather touch chair movement controls via main panel and assistant tray
Spittoon flush and cup filler control system
Hot and cold water control system
Multifunctional foot control with chip air/water activation presence sensing
Major Components

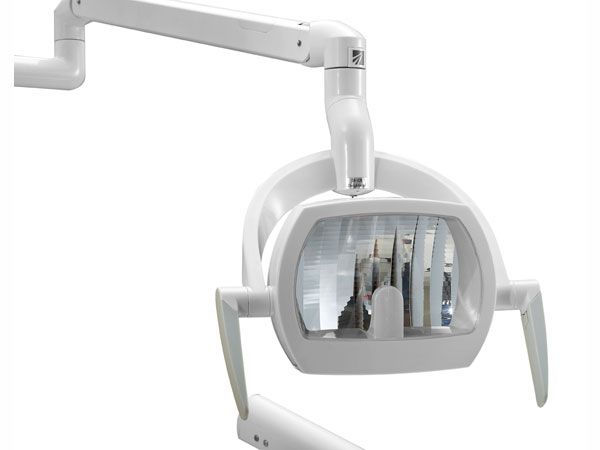

LED operating light with touch adjustment and sensor
Newly designed assistant table
Stool with height adjustment
Slim design doctor table
Multi-function foot control
Ceramic cuspidor
Standard Unit Includes
Large ergonomic soft PU cushion
Triaxial operating LED light with intensity of 35k Lux, controlled in 6 stages
Ceramic spittoon
Multifunctional foot control
Water supply system
Saliva ejector with high and low pneumatic suction
DC under voltage X-ray film viewer
Programmable cup filler and bowl rinsing
Water heater
Purified water bottle
Available Upgrades
Scaler and light cure
Micromotor
Intraoral camera and 17 inch HD monitor
Low speed airmotor handpiece
High speed air turbine handpiece
Top mounted doctor table (overhanging version)
Technical Parameters
Power supply: 220V, 50/60Hz
Air source pressure: 0.5 to 0.8 MPa
Water source pressure: 0.2 to 0.8 MPa
Motor voltage: 24V
Upholstery Options
Choose from 8 standard colours, including light blue, dark blue, light green, yellow, orange, green, ivory yellow, and blue, to match your practice's style.
Manufactured by Medtech Remedies Pvt. Ltd., Bangalore, India.
